Tare Weight (T): | 9.8 |
Dimension (m): | 15.5X2.5X3.9 |
Axle Load Capacity (T): | 35 |
Its core features are safe storage and transportation, anti-leakage, corrosion resistance and other properties, ensuring that the oil does not volatilize or pollute the environment during transportation.

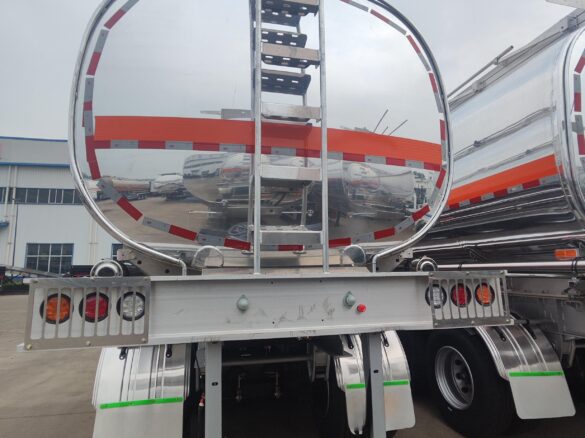

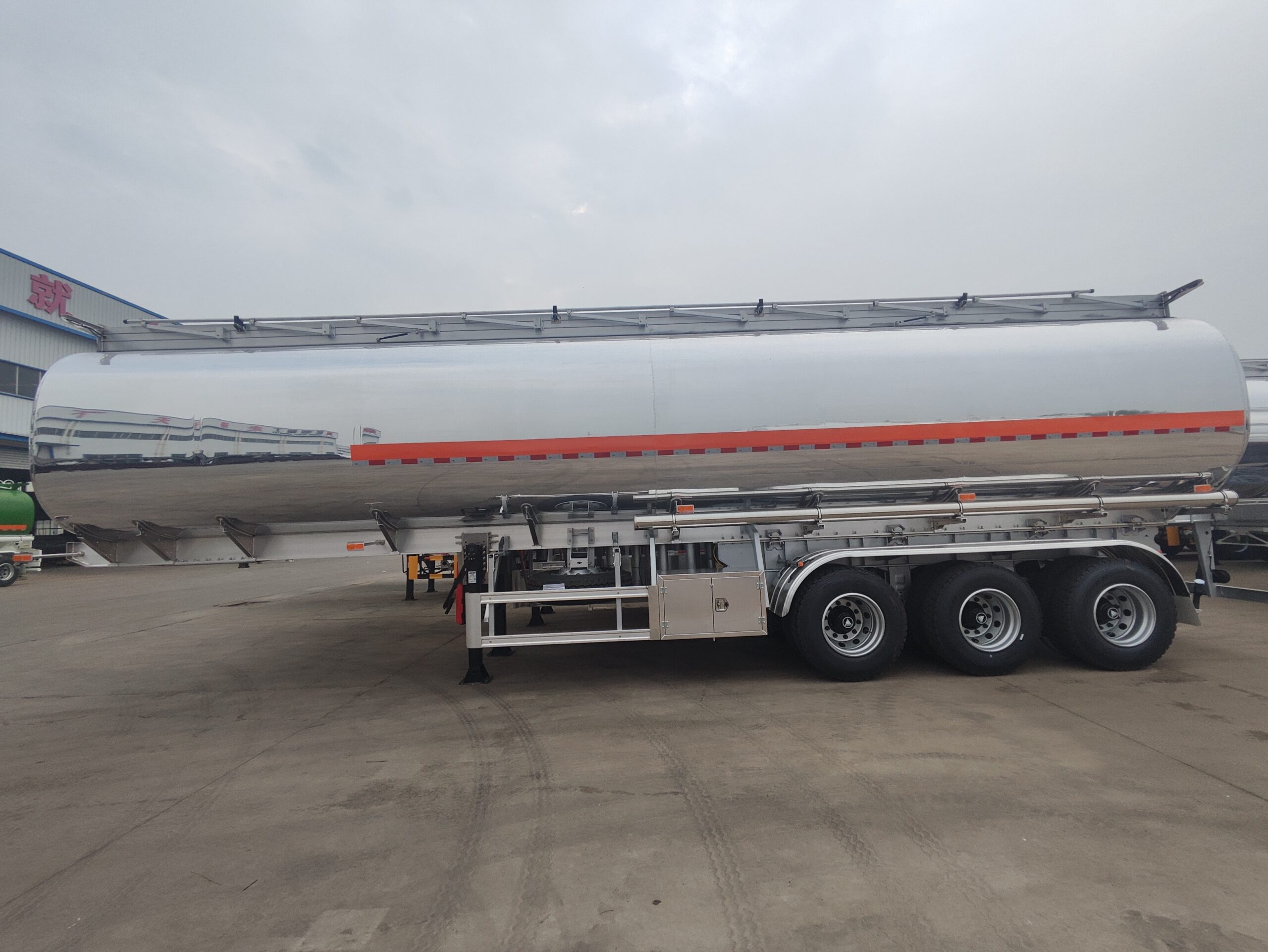

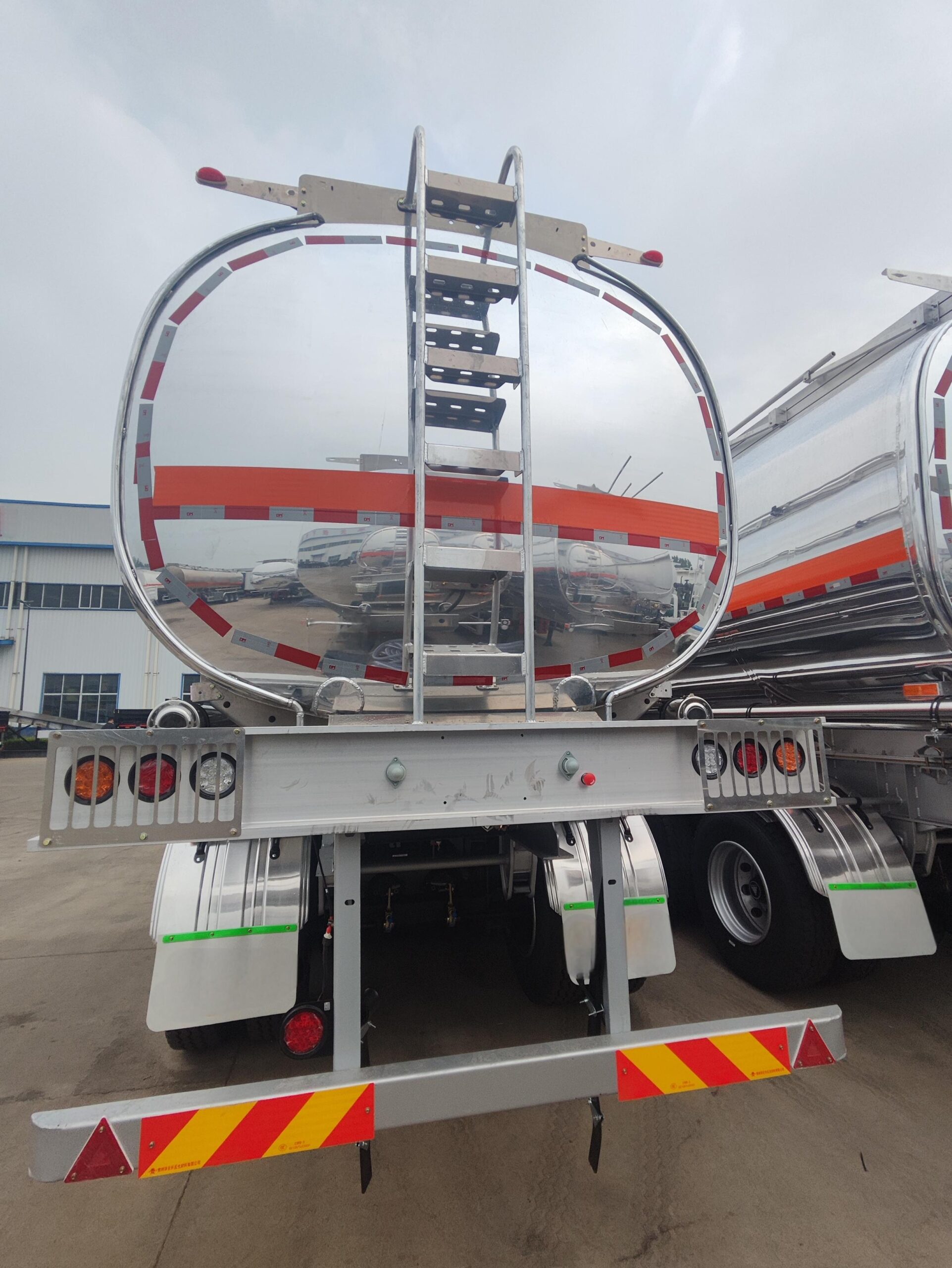

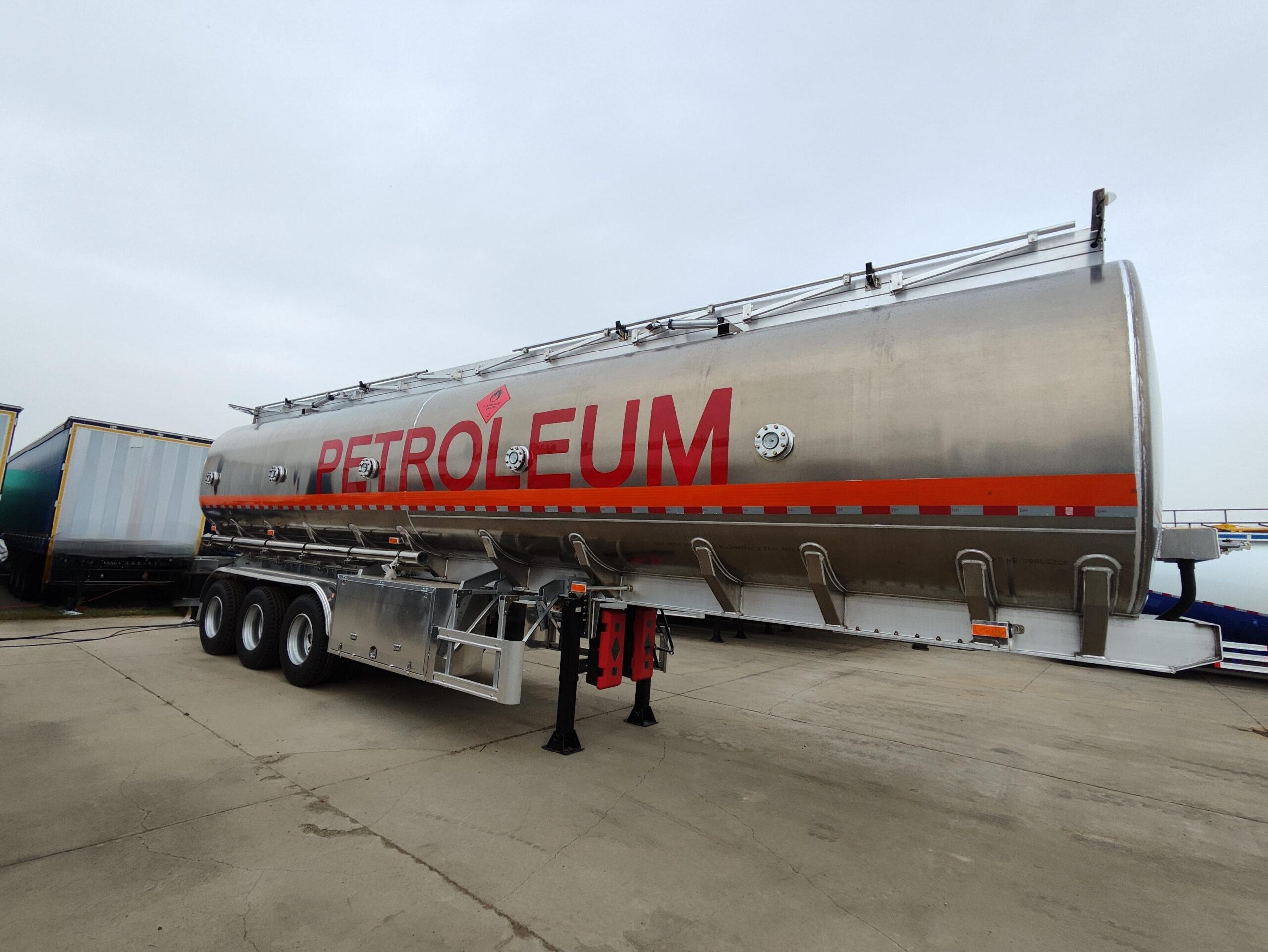

Oil tank semi-trailer is a special vehicle specially used to transport liquid oil products, and is widely used in petroleum, chemical, food and other industries.
The tank structure is made of carbon steel (economical, suitable for ordinary oil products), stainless steel (food grade/highly corrosive liquid, such as edible oil, chemicals), aluminum alloy (lightweight, suitable for long-distance transportation), and the tank is equipped with compartment plates and anti-wave plates to reduce liquid sloshing and improve driving stability. Customizable heat preservation/heating function for constant temperature transportation of easily solidified liquids such as asphalt and heavy oil. There are anti-static measures, exhaust valve/pressure balancing device and emergency shut-off valve and anti-epidemic flow sensor to avoid overload. The volume ranges from 20 to 50 cubic meters (approximately 15 to 40 tons of load). Lightweight design, aluminum alloy tank body is 20% ~ 30% lighter than carbon steel, improving effective cargo capacity.
Dimensions (L×W×H) (m) | 11.5X2.5X3.9 |
Tare weight(T) | 9.8 |
Maximum Load Capacity (T) | 35 |
Wheel base(mm) | 6780+1310+1310 |
Main Beam | Upper Plate: 14mm, Lower Plate: 16mm, vertical plate: 8mm (Customizable) |
ABS | Kormee |
Axle Brand | optional axle brand such as SAF/FUWA/BPW ETC. |
Number of Axles | optional axle number such as 2/3/4 axles… |
Axle Load Capacity(T) | 13/16/20 tons |
Embryo | 12.00 R22.5/315 80R22. 5/11. 00R20/12. 00R20 (Brand, single and double optional) |
Wheel rim | 9.00-22.5/8.00-20/8.50-20 |
Traction pin | 2 “(50mm) or 3.5” (90mm) JOST or other brand optional |
Suspension | Mechanical suspension, air suspension (US or Germany) |
Leaf spring | 90 (width) mm * 13/16 (thickness) mm * 10 (layer) |
Drop gear | 12R22.5 12PR |
Number of Tires | Duty landing gear weighing 28 tons. Brand optional FUWA/JOST etc |
Payload Capacity (t): | 3.6 |
External Dimension (m): | 8.02X2.55X3.06 |
Tare Weight (kg): | 7 |
Payload Capacity (T): | 35-50 |
Dimension (L×W×H) (mm): | 13,950 X2,550X1,250 |
Tare Weight (T): | 5 |
Payload Capacity (T): | 21 |
Dimension (m): | 13.75X2.55X3.98 |
Loading Capacity (unit): | 7 |
Payload Capacity (T): | 33.5 |
Dimensions (L×W×H) (m): | 13.75 X3X1.5 |
Curb Weight (T): | 6.5 |
