Payload Capacity (T): | 60 |
Dimension (m): | 16.69X2.7X3 |
Loading Capacity (unit): | 8 |

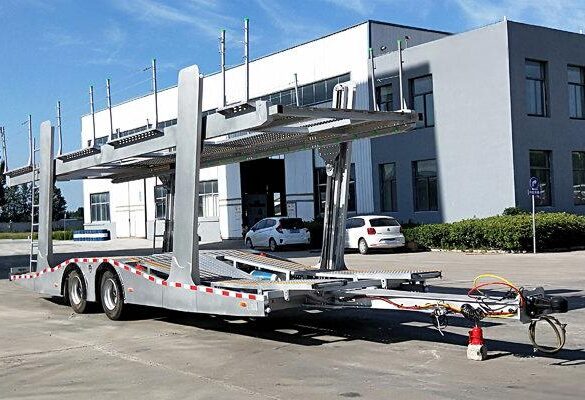

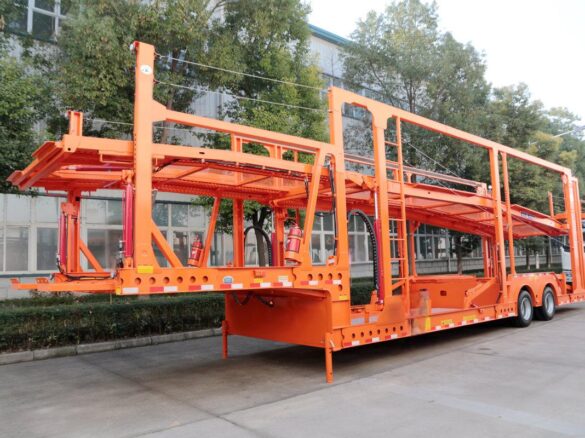

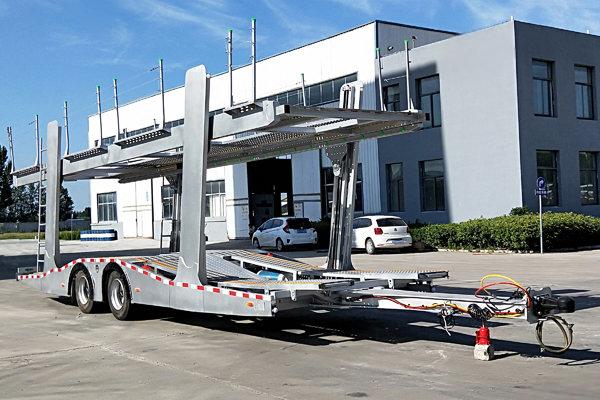

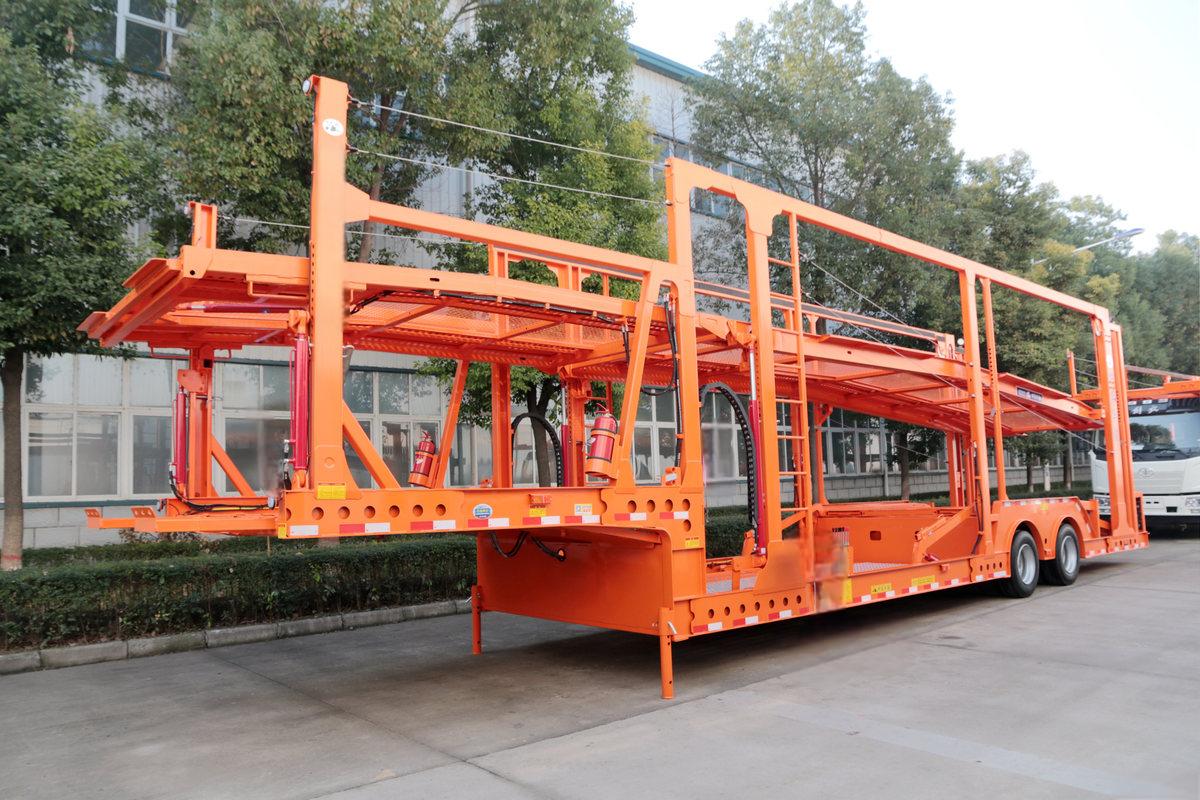

The Car Carrier Trailer is designed to adapt to various road conditions and transportation scenarios, allowing for flexible adjustment of transport plans. Its simple operation facilitates driver control, providing convenience throughout the transportation process. The specialized design enables quick loading and unloading of vehicles, reducing transport time and meeting market demands.
It is a special semi-trailer specially used to transport passenger cars (cars, SUVs, MPVs, etc.). It has the characteristics of multi-layer loading, efficient transportation, safe fixation, etc. It is widely used in automobile manufacturing, 4S store distribution, used car logistics and other fields.
Double-layer/three-layer structure, can transport 8 to 12 cars at the same time (depending on the length of the vehicle type). Hydraulic lifting platform, some models can adjust the floor height to adapt to the height of different models. High strength steel skeleton + anti-rust coating to ensure bearing capacity and durability. Equipped with straps + anti-slip mats and anti-collision guardrails, the standard load is 20 ~ 30 tons (about 8 ~ 12 cars). The aluminum alloy car is 2 ~ 3 tons lighter than the steel car and can hold 1 ~ 2 more cars.
Dimension (m) | 16.69X2.7X3 |
Tare weight (T) | 9.8 (depending on final configuration) |
GCW(T) | 60 |
Loading Capacity (unit) | 8 |
Main crossbeam | Q345B/T700 steel height 300mmThe upper wing plate is 12 mm,The lower wing plate is 12 mm,The vertical plate is 8mm. (Customizable) |
Type | The two deck, the top foredeck and the rear deck, can be lifted and downward separately through a hydraulic system |
Lifting type | Hydraulic and manual lifting mechanisms |
Suspension | Mechanical suspension Air suspension (USA or Germany) |
Drop gear | A 28-ton landing gear. Brand optional FUWA/JOST etc |
Braking system | Dual line brake system, air chamber T30/30, 3X40L air tank |
Electrical system |
|
Payload Capacity (T): | 33.5 |
Dimensions (L×W×H) (m): | 13.75 X3X1.5 |
Curb Weight (T): | 6.5 |
Payload Capacity (T): | 21 |
Dimension (m): | 13.75X2.55X3.98 |
Loading Capacity (unit): | 7 |
Payload Capacity (t): | 3.6 |
External Dimension (m): | 8.02X2.55X3.06 |
Tare Weight (kg): | 7 |
Payload Capacity (T): | 35-50 |
Dimension (L×W×H) (mm): | 13,950 X2,550X1,250 |
Tare Weight (T): | 5 |
