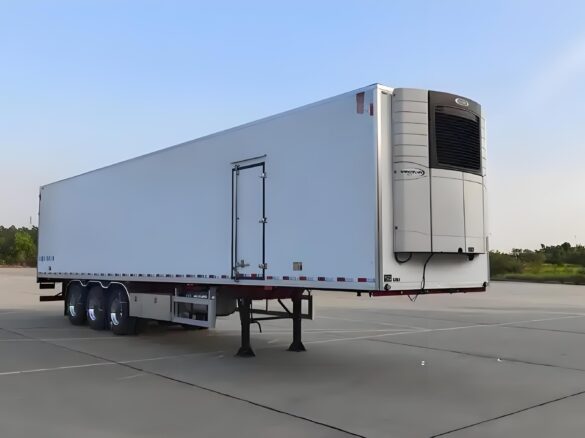

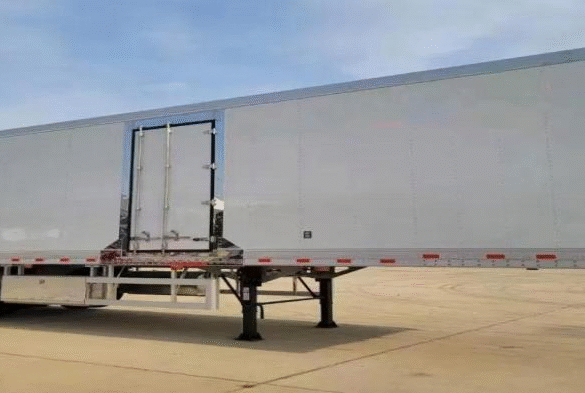

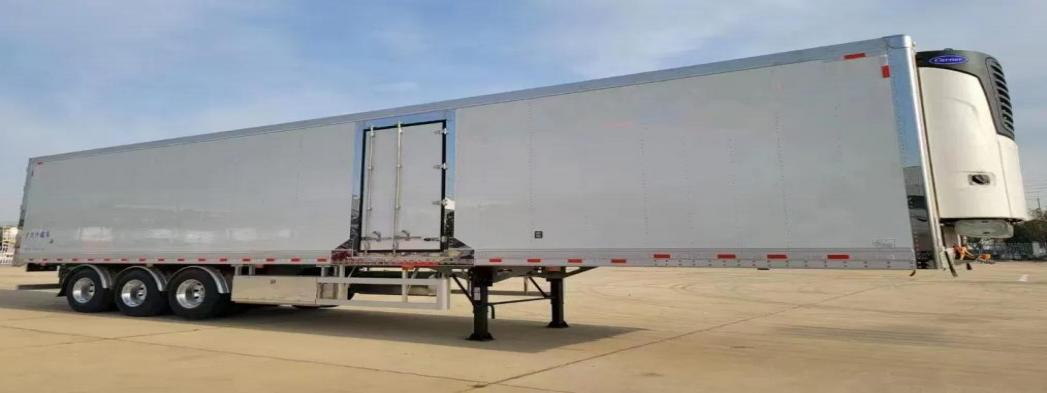

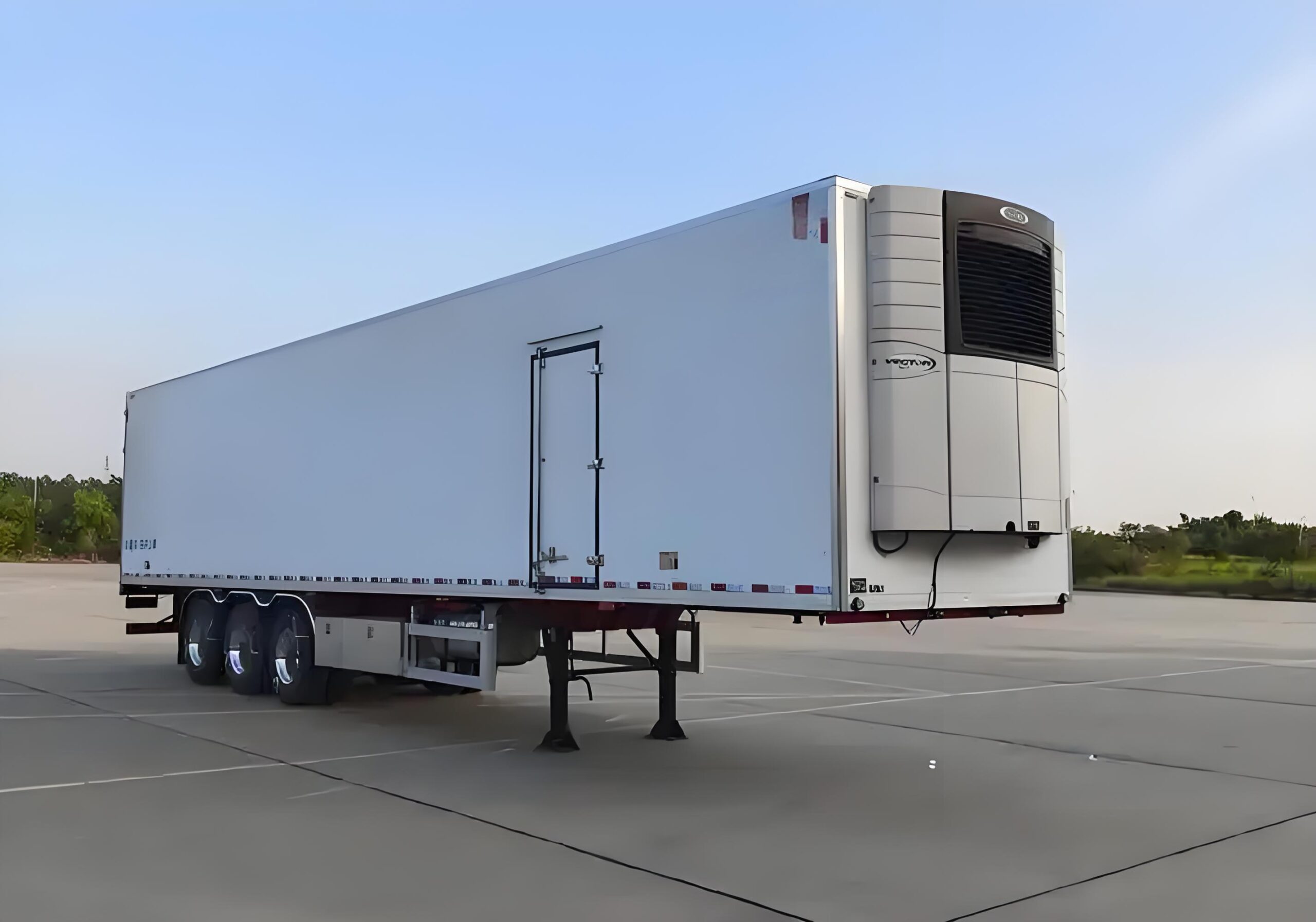

13.6-meter Refrigerated Semi-trailer

Tare Weight (T):8.8
Dimension (m):13.6X2.6X4
Axle Load Capacity (T):30(Customizable)



Advantages

  1. The fence  semi-trailer boasts top-tier steel construction, cutting-edge technology, and stringent manufacturing processes. This vehicle exhibits a well-designed structure, dependable performance, effortless operation, and an aesthetically pleasing exterior.
  2. It showcases impressive attributes such as a capacious interior and exceptional load-bearing capacity. The trailer’s dimensions in terms of length, width, and height can be customized to cater to diverse transportation requirements.
  3. Itsmulti-tiered shelving system maximizes cargo storage within minimal space, thereby enhancing cargo capacity and overall transportation efficiency.

Purpose

Refrigerated semi-trailer is a special transportation vehicle equipped with a refrigeration system. It is mainly used for constant temperature transportation of temperature-sensitive goods (such as food, medicines, etc.). Its core feature is the ability to control temperature to ensure that the goods are in a suitable low temperature or frozen environment during transportation.

Performance

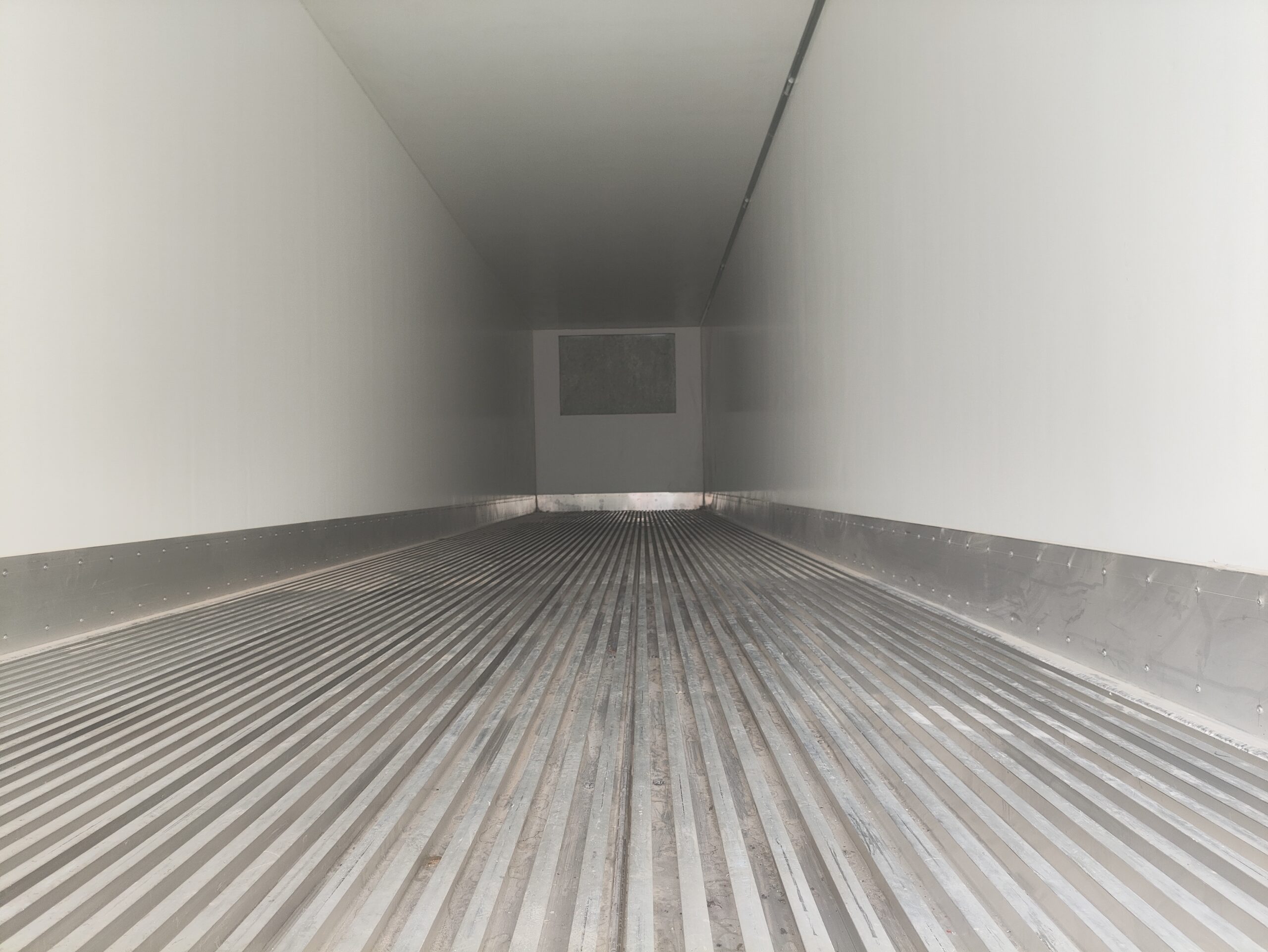

Driven by diesel or electric drive, the temperature adjustment range is usually-30 ℃ ~ + 20 ℃. Microcomputer control, the temperature difference can be controlled within ± 1 ℃. Multi-temperature zone design Some models can be divided into different temperature zones (such as freezing + refrigeration). The inner and outer walls are made of fiberglass/stainless steel, and the middle is filled with polyurethane insulation layer (thickness 80 ~ 120mm), with low thermal conductivity. Strong sealing, magnetic sealing strip is used in the door seam to prevent cold air leakage. Antibacterial coating on the inner wall, easy to clean, meets food hygiene standards. The load capacity is usually 15 ~ 30 tons, the volume is 50 ~ 90 cubic meters (depending on the size of the vehicle model), and the lightweight design (such as aluminum alloy skeleton) can increase the effective cargo capacity.

Specification

Dimensions (L×W×H)  (m) 13.6X2.6X4 (can be customized)
Tare weight (kg) 8.8 (depending on final configuration)
Payload Capacity     (T) 55 (Customizable)
Tank Material Q345B/T700 steel height 500mm
Main Beam Upper Plate: 14mm, Lower Plate: 16mm,  vertical plate: 8mm(Customizable)
Side beam 16mm channel steel (material is Q235B steel) (Customizable)
Base Material Russian Larch Wood
Casing material polyurethane
Mudguard Material 316stainless steel
Leaf spring 10X13/16X90
Drop gear Duty landing gear weighing 28 tons. Brand optional FUWA/JOST etc

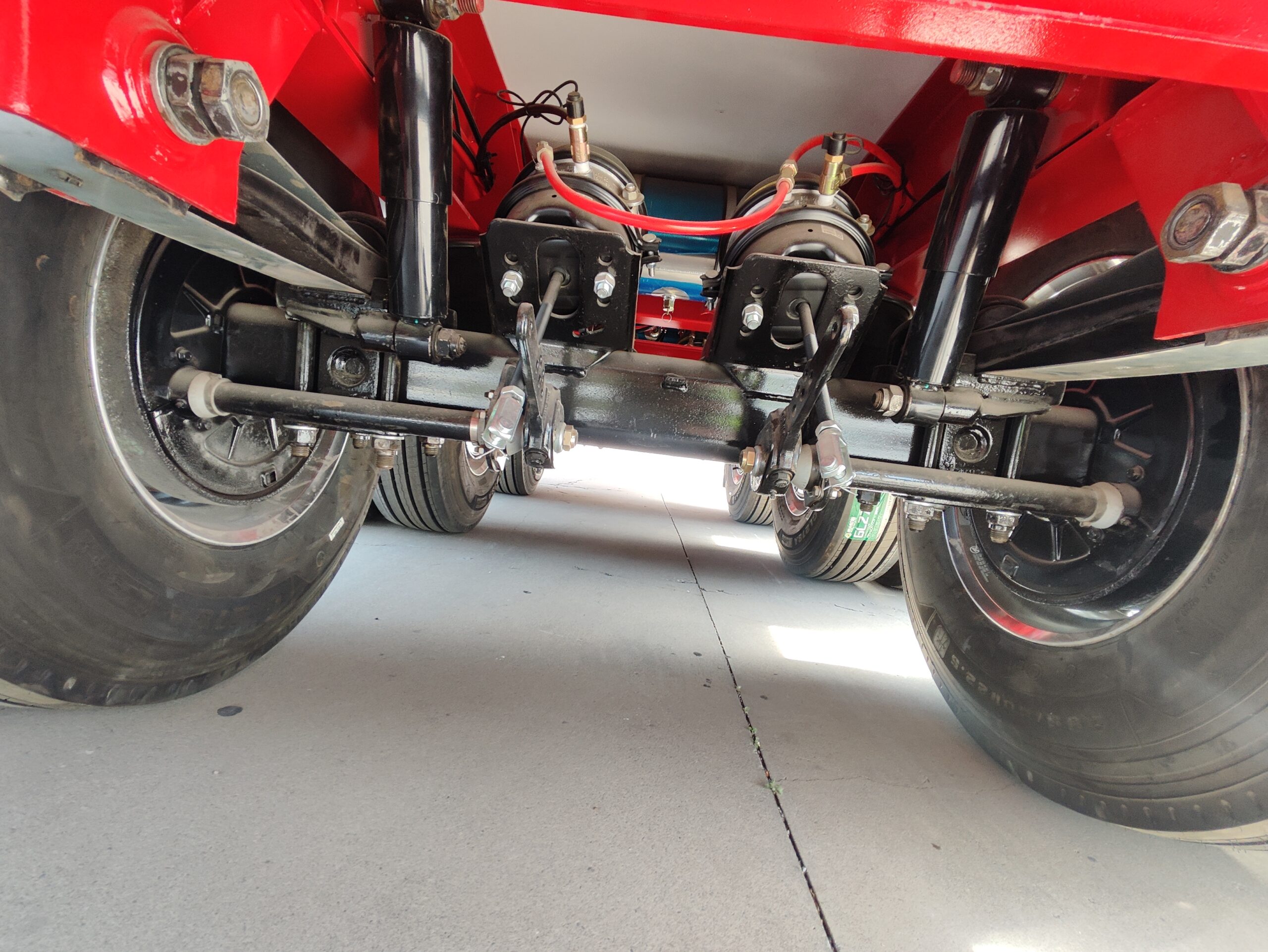

Braking system Dual line brake system, air chamber T30/30, 3X40L air tank
ABS system None or installation as required.
Tires 385/65-22.5 (Brand optional)
Electrical system Voltage: 24v waterproof    Socket: 7 ways (7-wire harness); Lead lightweight (standard rear lighting, turning light, rear reflector, side light, edge reflector, etc.)
